4A-6M20-08
€17.36

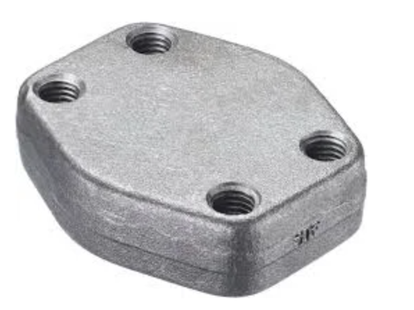

Blind O-ring Flange 1/2" 6000PSI

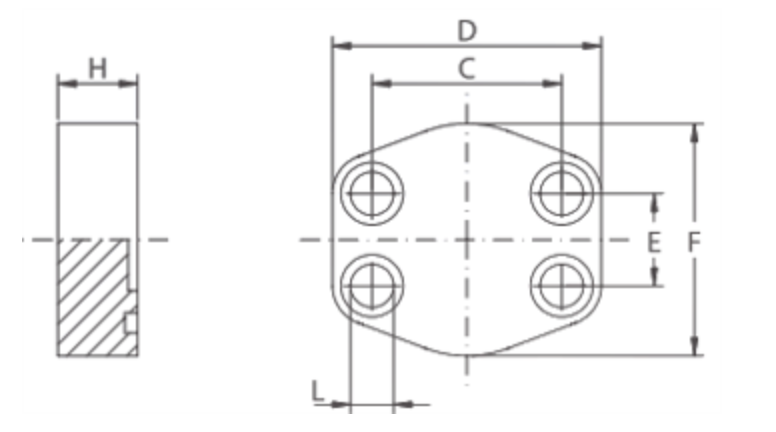

Dimensions:
C : 40,49
E : 18,24
L : M8 x 30
SAE-Blind Flanges
Blind Flange O-Ring
Counter Blind Flange
4A-6M20-12
€18.68
Blind O-ring Flange 3/4" 6000PSI
Dimensions:
C : 50,80
E : 23,80
L : M10 x 40
4A-6M20-16
€21.98
Blind O-ring Flange 1" 6000PSI
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-6M20-20
€26.36
Blind O-ring Flange 1-1/4"6000PSI
Dimensions:
C : 66,68
E : 31,75
L : M14 x 45
4A-6M20-24
€31.02
Blind O-ring Flange 1-1/2"6000PSI
Dimensions:
C : 79,36
E : 36,50
L : M16 x 50
4A-6N10-08
€19.62

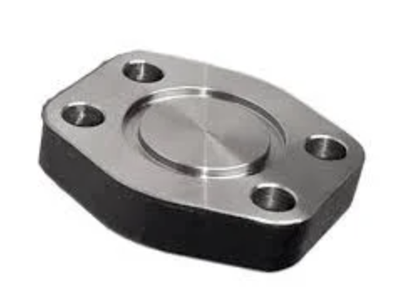

Blind Counter Flange 1/2" 6000PSI

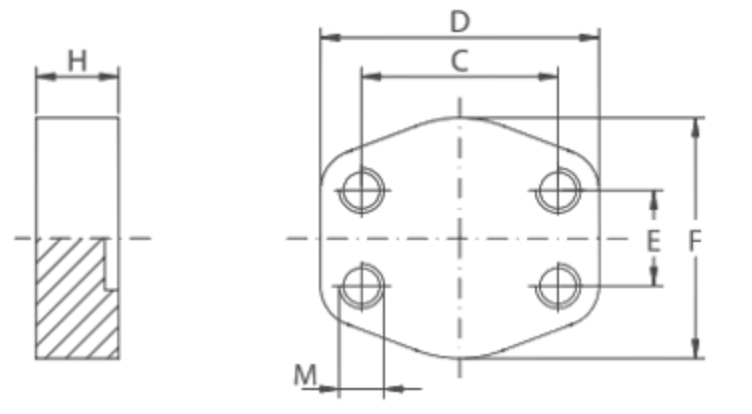

Dimensions:
C : 40,49
E : 18,24
L : M8 x 30
4A-6N10-12
€20.96
Blind Counter Flange 3/4" 6000PSI
Dimensions:
C : 50,80
E : 23,80
L : M10 x 40
4A-6N10-16
€24.78
Blind Counter Flange 1" 6000PSI
Dimensions:
C : 57,15
E : 27,76
L : M12 x 45
4A-6N10-20
€29.72
Blind Counter Flange 1-1/4" 6000PSI
Dimensions:
C : 66,68
E : 31,75
L : M14 x 45
4A-6N10-24
€34.84
Blind Counter Flange 1-1/2" 6000PSI
Dimensions:
C : 79,36
E : 36,50
L : M16 x 50
