SAE Socketweld Flanges

SAE FLANGE 6000PSI

4A-6A20-08

€15.35

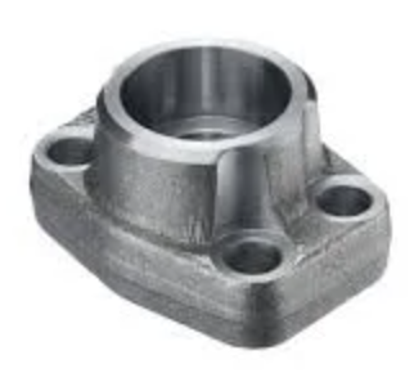

Socketweld Flange SAE 1/2" 6000PSI

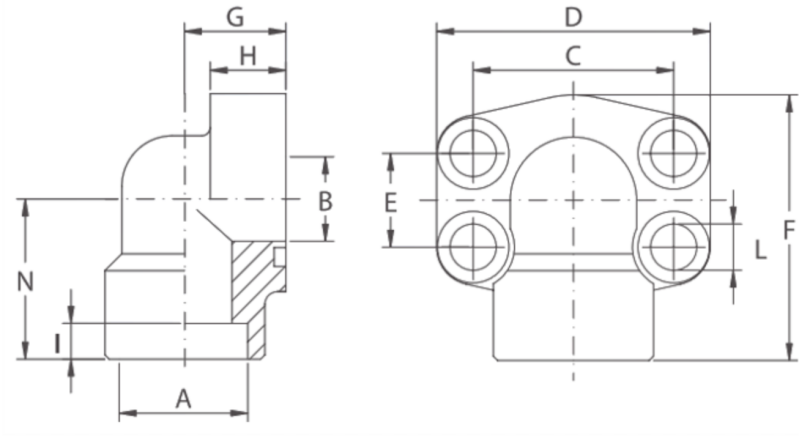

Dimensions:

C : 40,49

E : 18,24

L : M8 x 30

+ See details

4A-6A20-12

€23.57

Socketweld Flange SAE 3/4"6000PSI

Dimensions:

C : 50,80

E : 23,80

L : M10 x 40

+ See details

4A-6A20-16

€28.78

Socketweld Flanfe SAE 1" 6000PSI

Dimensions:

C : 57,15

E : 27,76

L : M12 x 45

+ See details

4A-6A20-20

€41.07

Socketweld Flange SAE 1-1/4 6000PSI

Dimensions:

C : 66,68

E : 31,75

L : M14 x 45

+ See details

4A-6A20-24

€68.53

Socketweld Flange SAE 1-1/2 6000PSI

Dimensions:

C : 79,36

E : 36,50

L : M16 x 50

+ See details

SAE FLANGE 3000 PSI

4A-5A20-08

€14.78

Socketweld Flange  SAE 1/2" 3000PSI

Dimensions

C : 38,10

E : 17,48

L : M8 x 30

+ See details

4A-5A20-12

€23.57

Socketweld Flange SAE 3/4" 3000PSI

Dimensions:

C : 47,63

E : 22,23

L : M10 x 35

+ See details

4A-5A20-16

€28.78

Socketweld Flange SAE 1" 3000PSI

Dimensions:

C : 52,37

E : 26,10

L : M10 x 35

+ See details

4A-5A20-20

€31.37

Socketweld Flange SAE 1-1/4 6000PSI

Dimensions:

C : 66,68

E : 31,75

L : M14 x 45

+ See details

4A-5A20-24

€41.07

Socketweld Flange SAE 1-1/2"3000PSI

Dimensions:

C : 69,85

E : 35,71

L : M12 x 45

+ See details
